Fixed Resistors
Please click
to see further details (Disital Catalog).
| Product | Appearance | Part No. Overview | Power Ratings(W) | Resistance Range(Ω) | Details |
|---|---|---|---|---|---|
| P.C.B Mounting type |  |

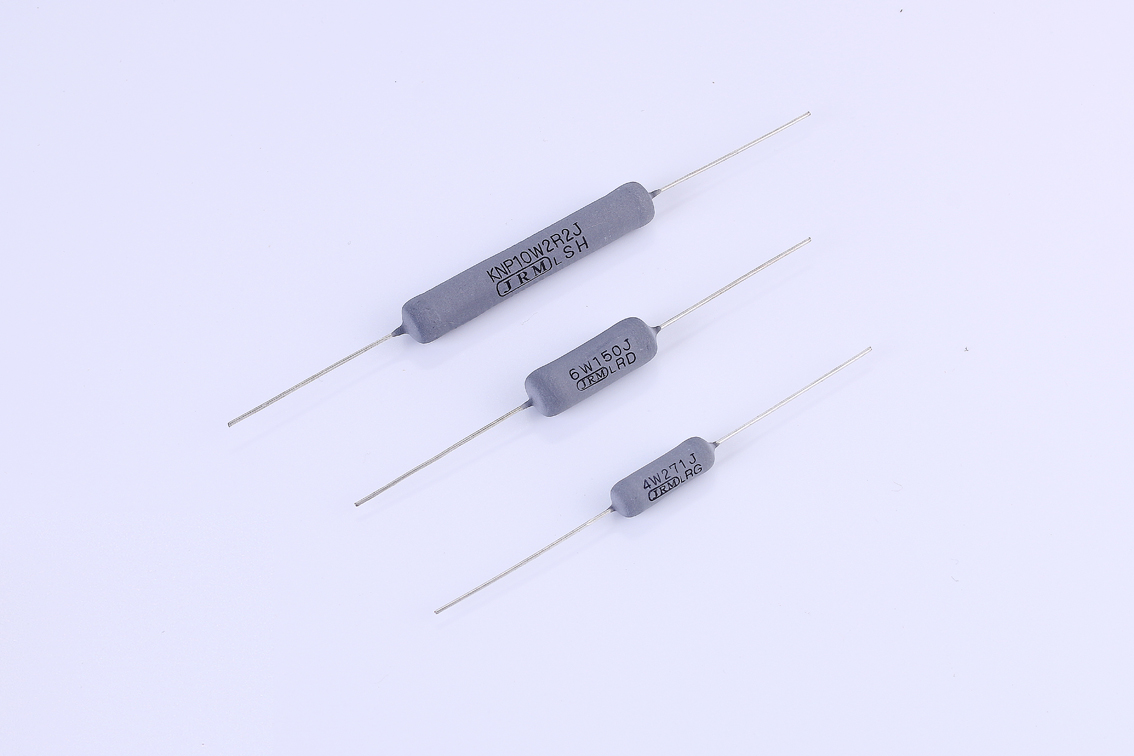

KNP PCB mounting, Ultra mini size type |
1～10 | 0.1～2.7K | |
 |

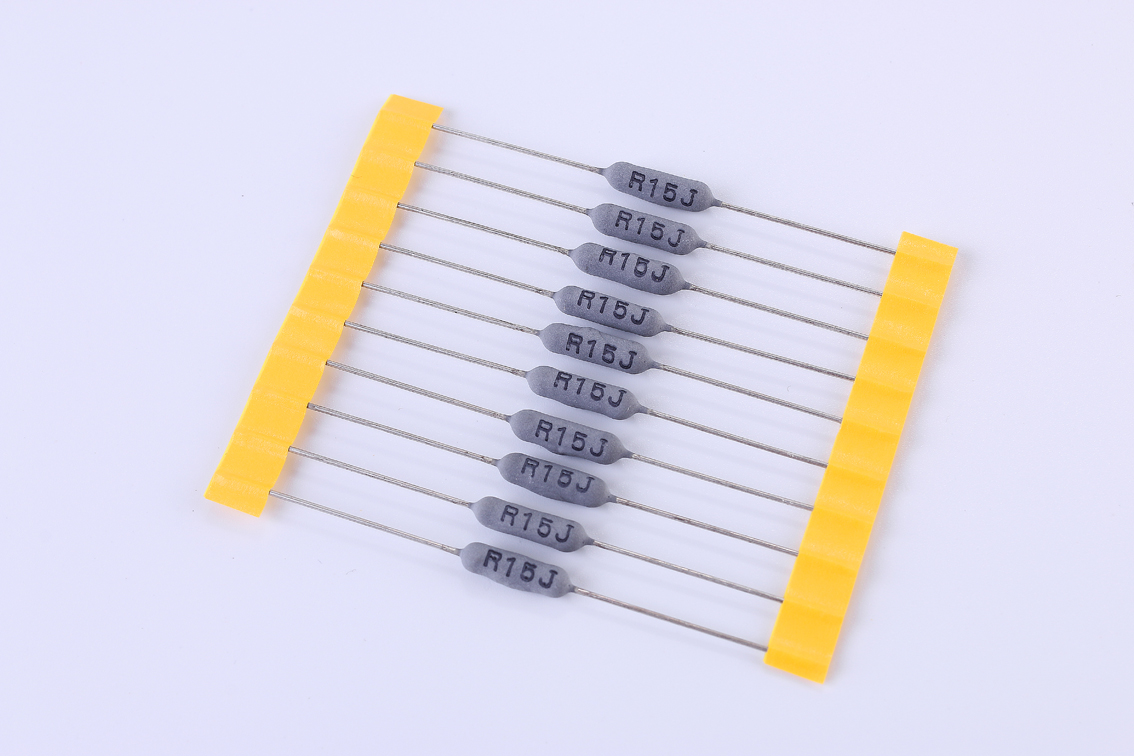

KNT Taping type of KNP 1～3W |
1～3 | 0.1～150 | |
|
 |

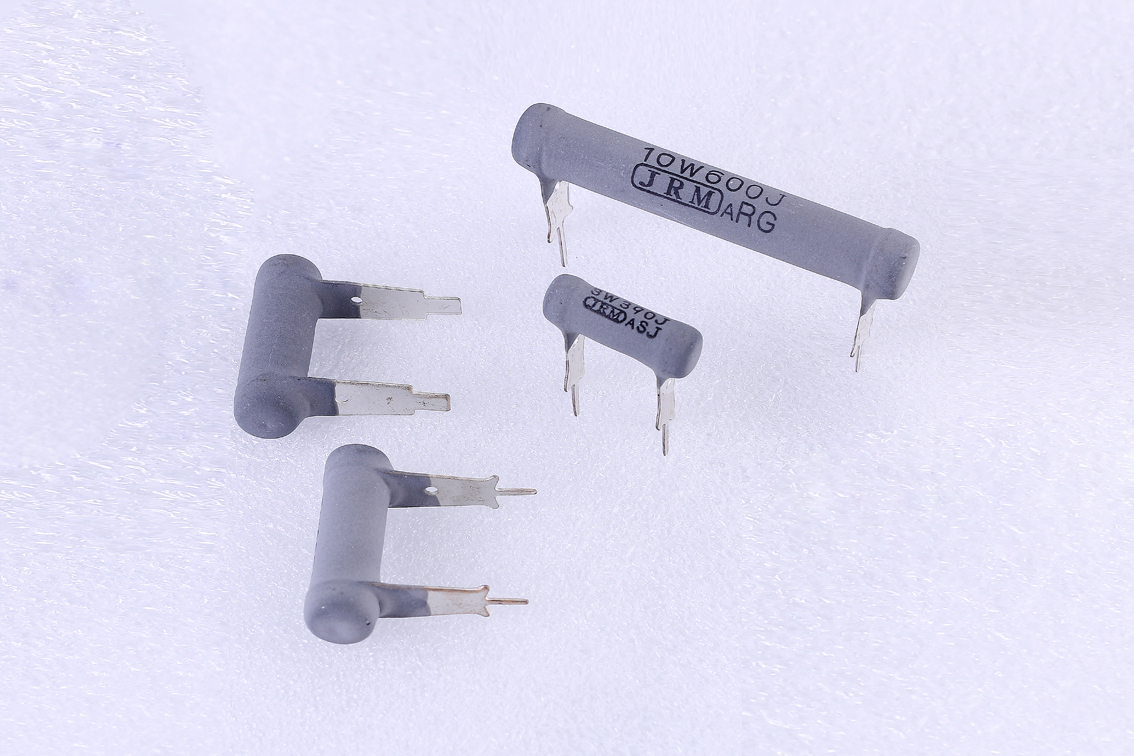

KNY Direct-mounting type |
2～10 | 0.1～1.8K | |
|
 |

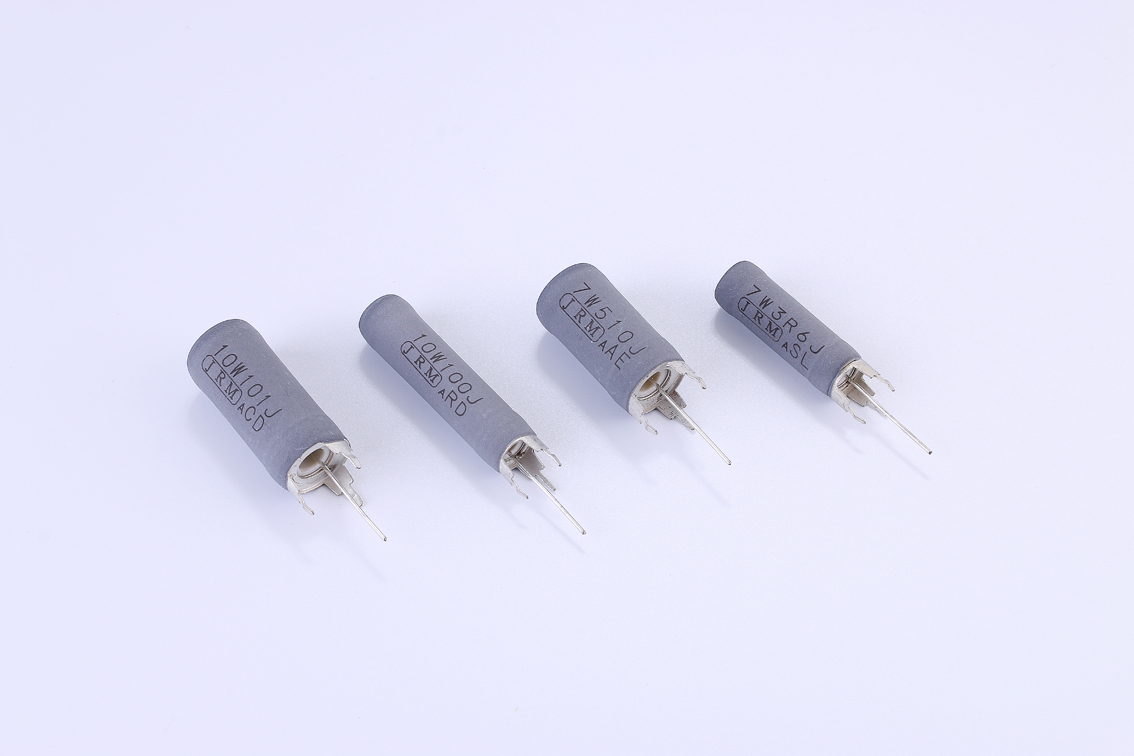

KNX Direct-mounting , space saving type |
5～20 | 0.33～3.9K | |
|
 |

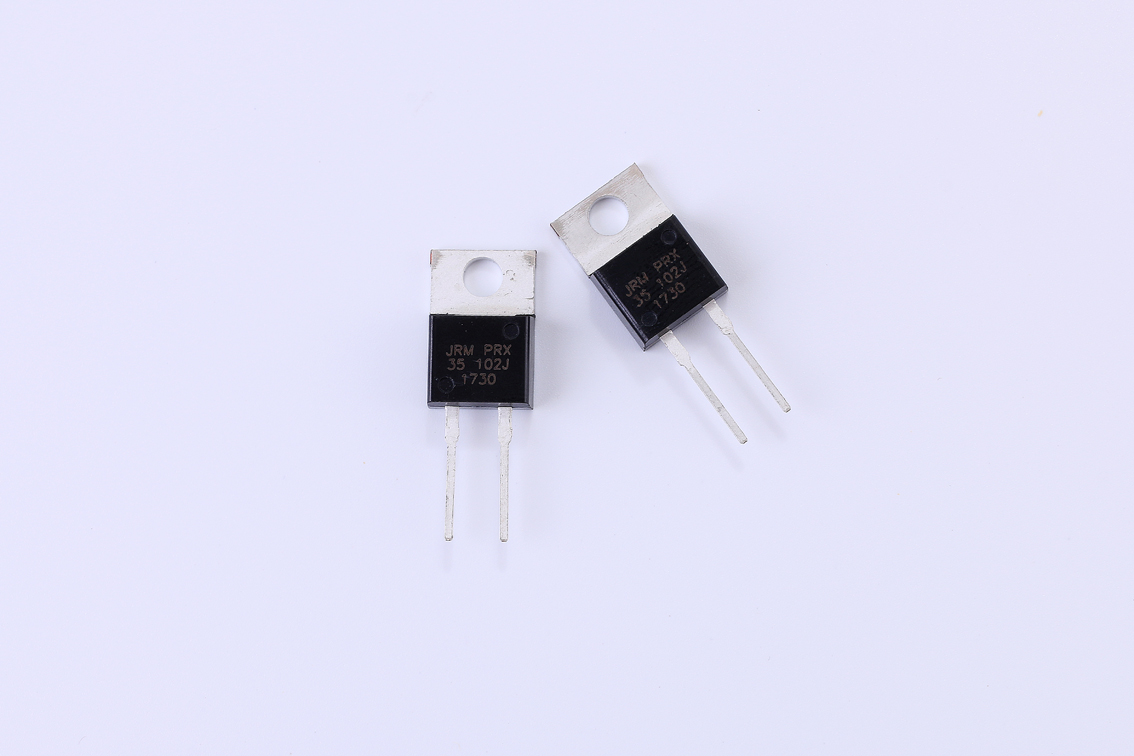

PRX Thick Film Power Resistor |
35 (on flange) |
20～1M | |
|
 |

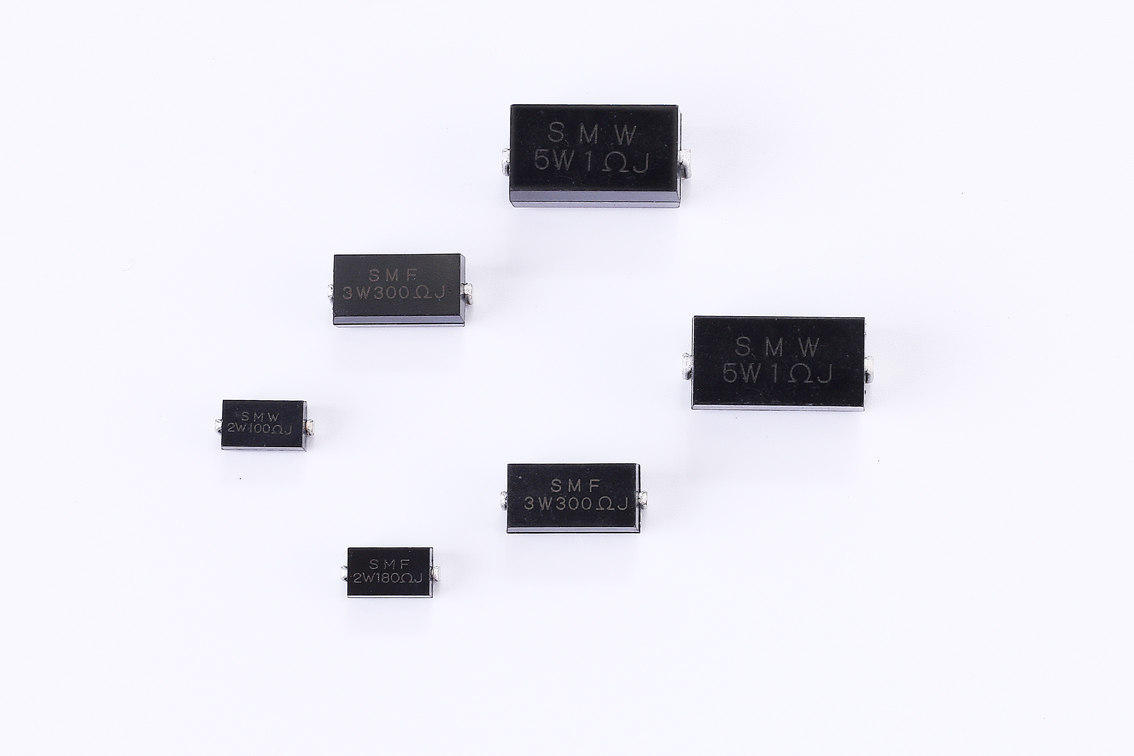

SMW/SMF Power Surface Mounting Type Resistor |
1～3 | SMW: 0.1～500 SMF: 10～2M |
|
|
 |

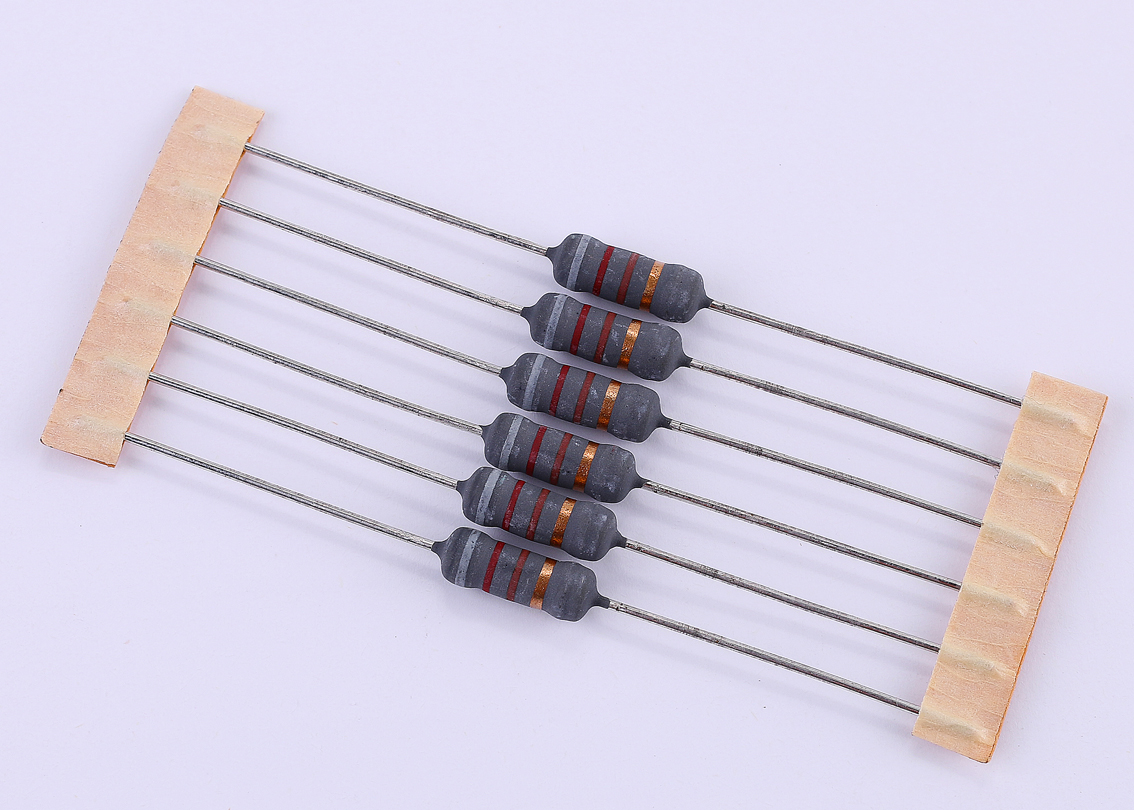

RSN/RSS Non Flammable Metal Oxide Film Resistor |
RSN:1/2～2 RSS:1/2～2 |
RSN: 0.22～100K RSS: 0.22～50K |
|
|
 |

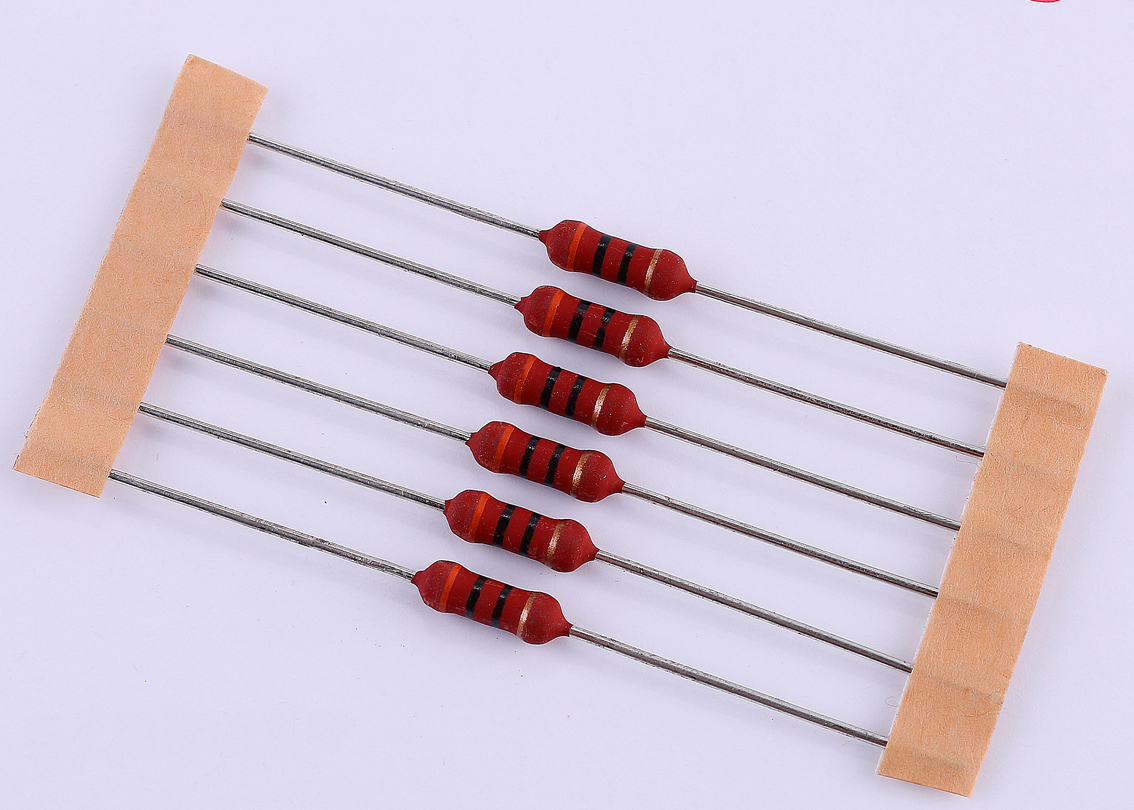

RSU Ultra mini size Non Flammable Metal Oxide Film Resistor |
1, 2 | 0.22～1M | |
|
| Square Cement Type |  |

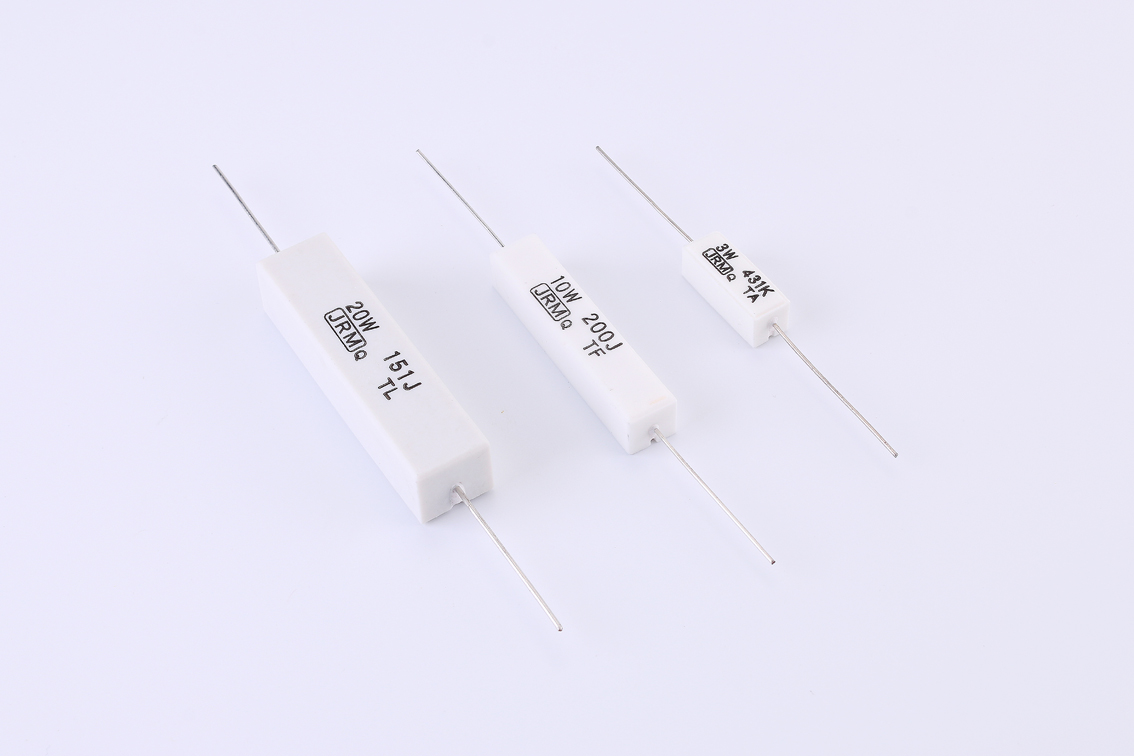

SQP Axial lead type |
3～20 | 0.12～4.7K | |
 |

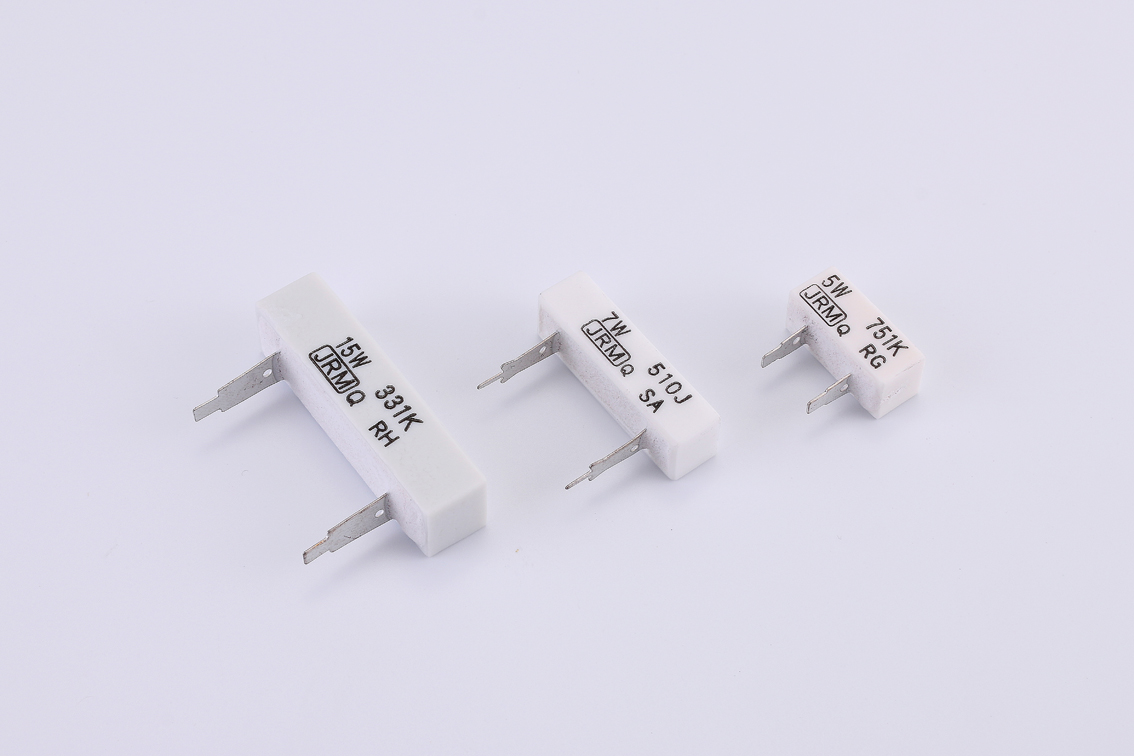

SQY Direct-mounting type |
5～15 | 0.18～3.3K | |
|
 |

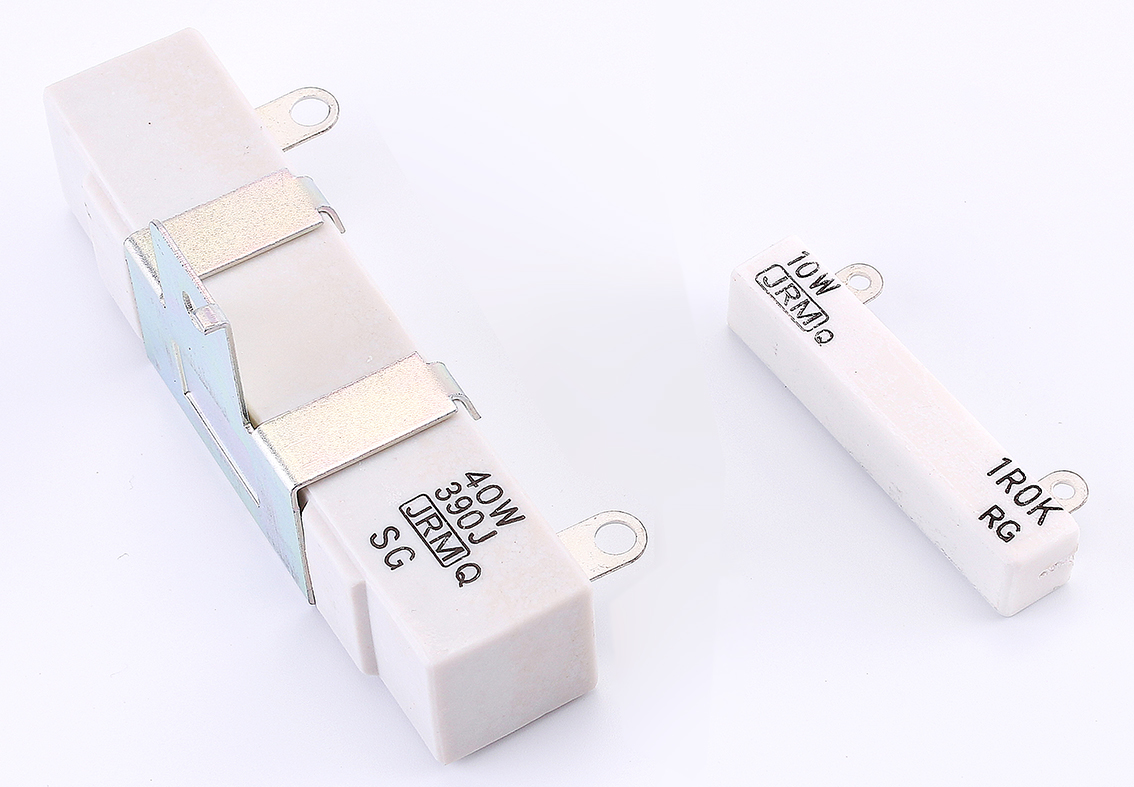

SQH Horn terminal type |
20～40 | 1.0～8.2K | |
|
 |

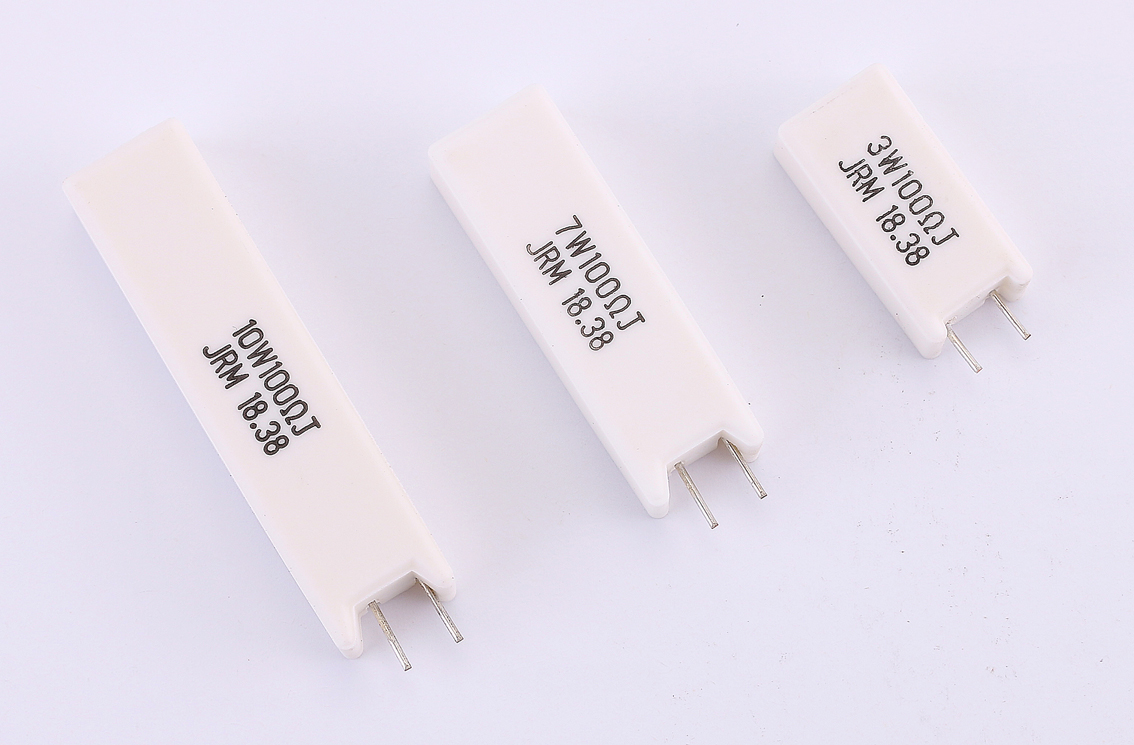

SQM/SPS Radial lead type |
SQM:1～10 SPS:7,10 |
SQM: 0.1～80K SPS: 0.1～60K |
|
|
 |

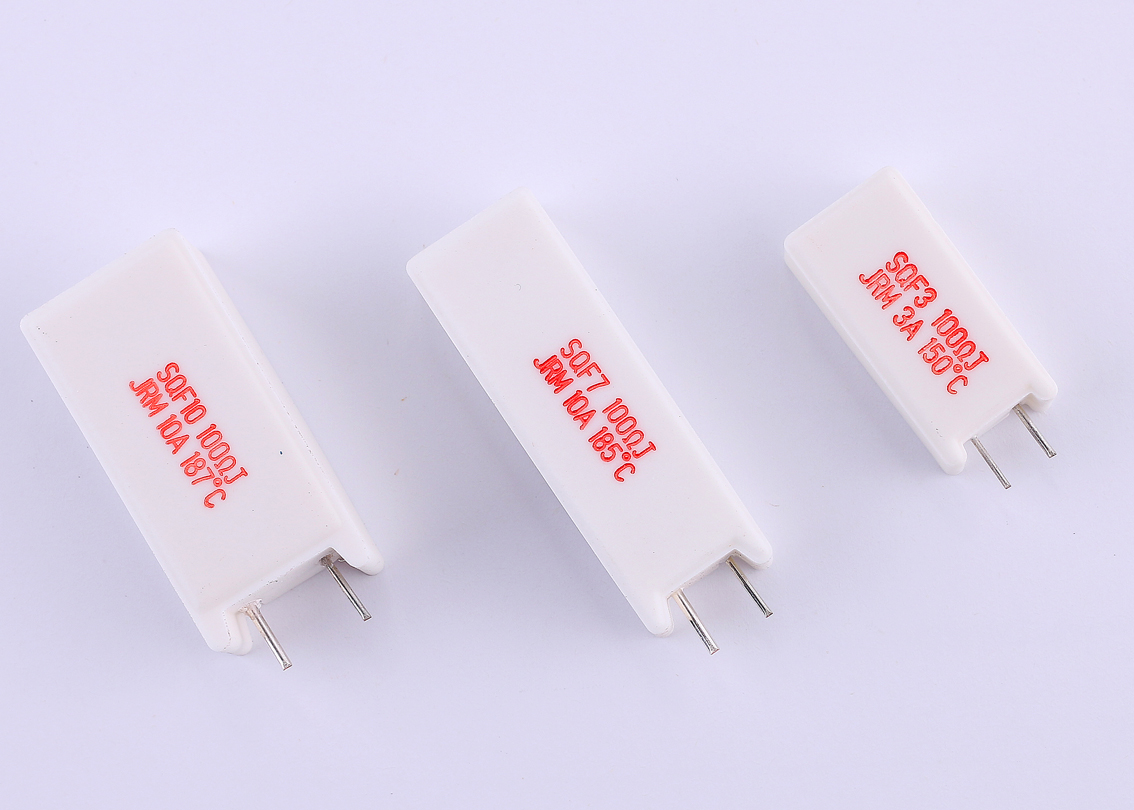

SQF Non Flammable Square Fixed Resistor with Thermal Fuse |
1.6～3.5 | 0.1～50K | |
|
| Shunt Resistors |  |

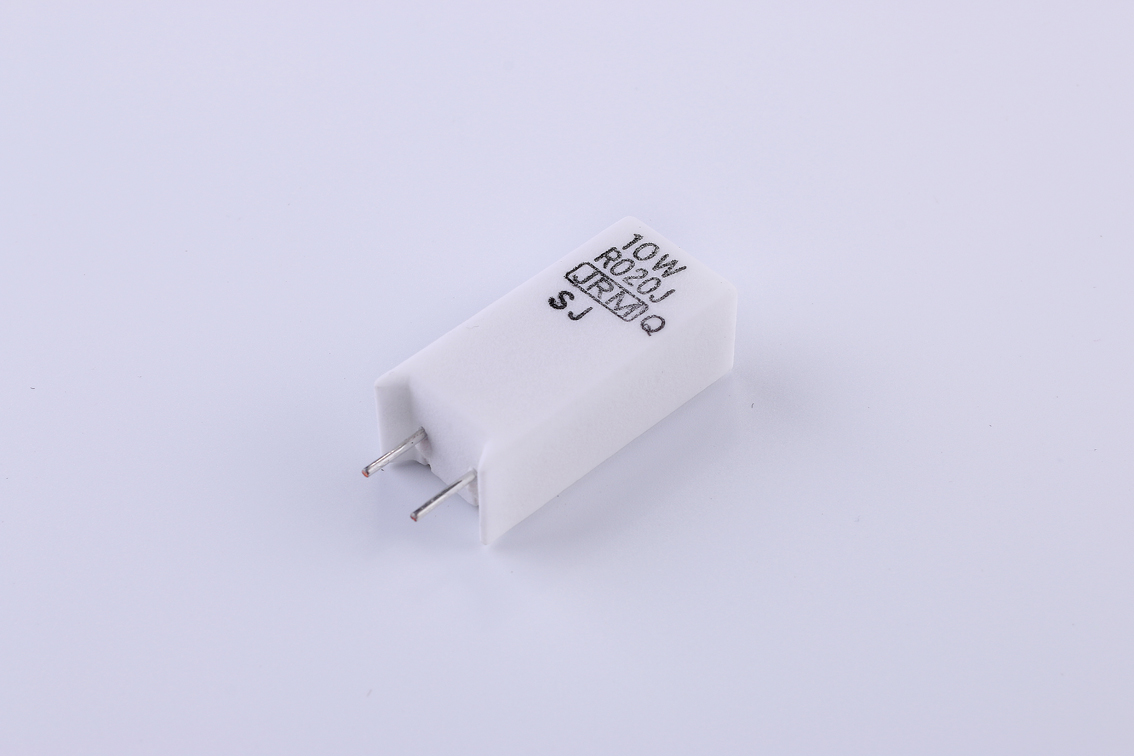

SV Shunt resistor for detecting current |
10 | 10～100m | |
 |

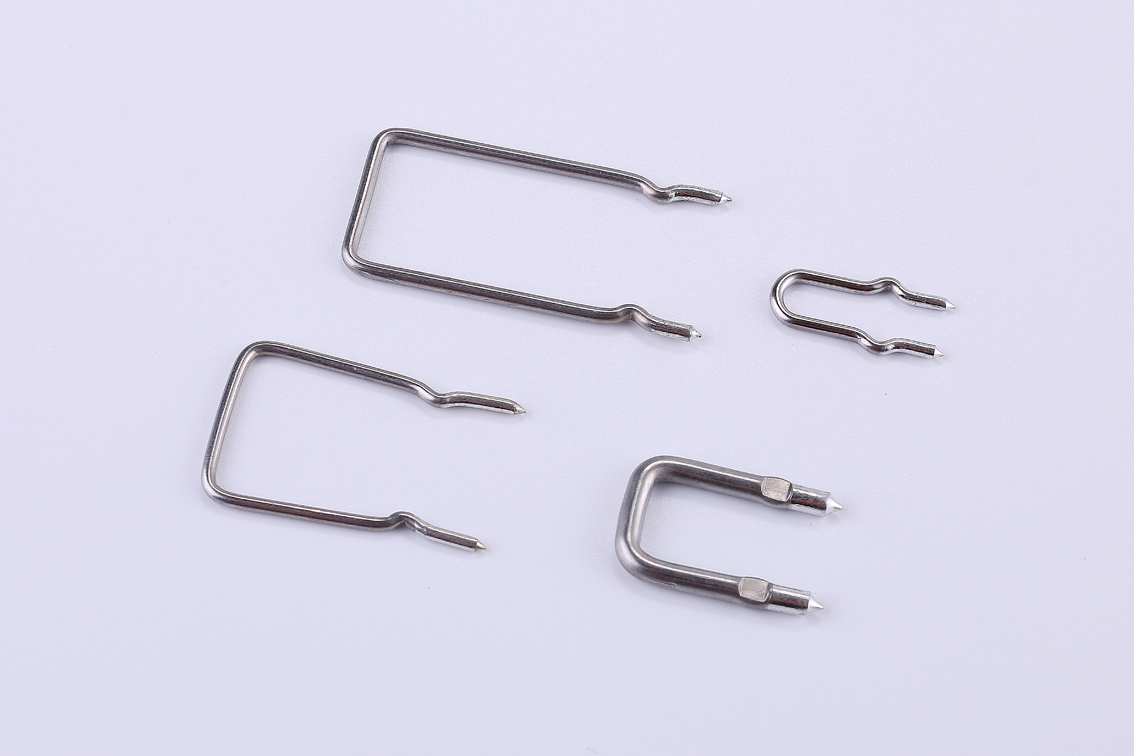

WOR Shunt resistor for detecting current |
3～14A | 4～75m | |
|
 |

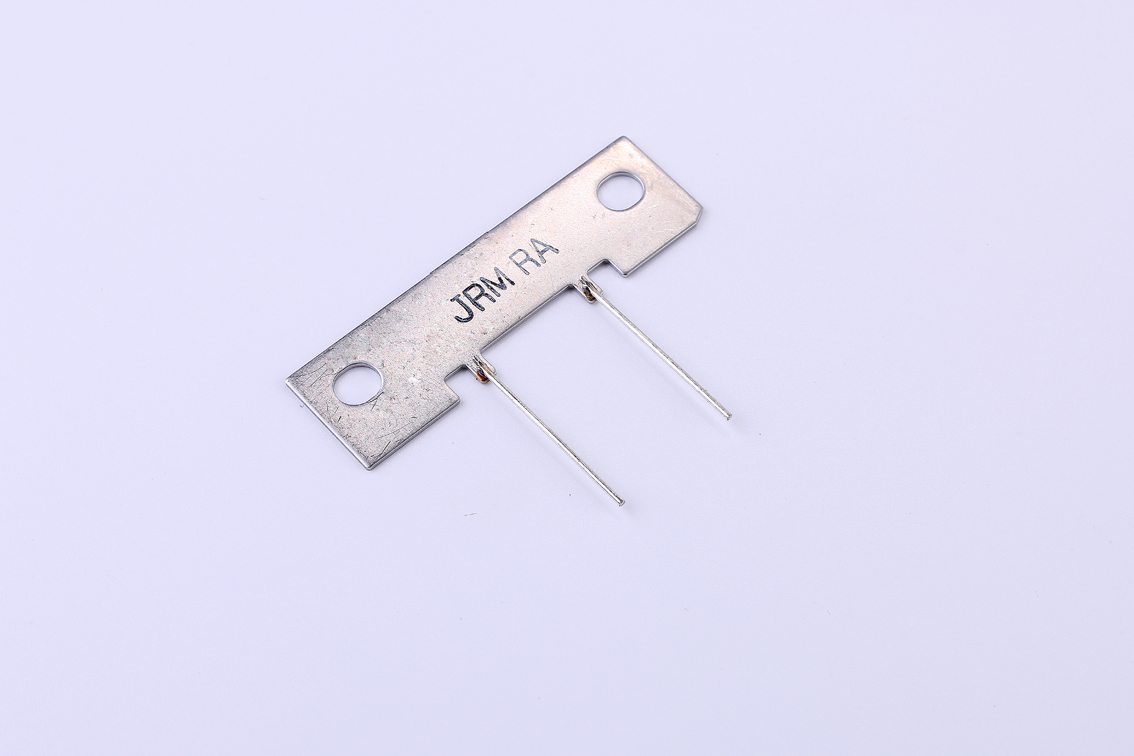

POR101 Shunt resistor for detecting current |
30A | 1m | |
|
 |
SBA Current sensing SMD Shunt Resistor |
See Details | See Details | |
|
 |

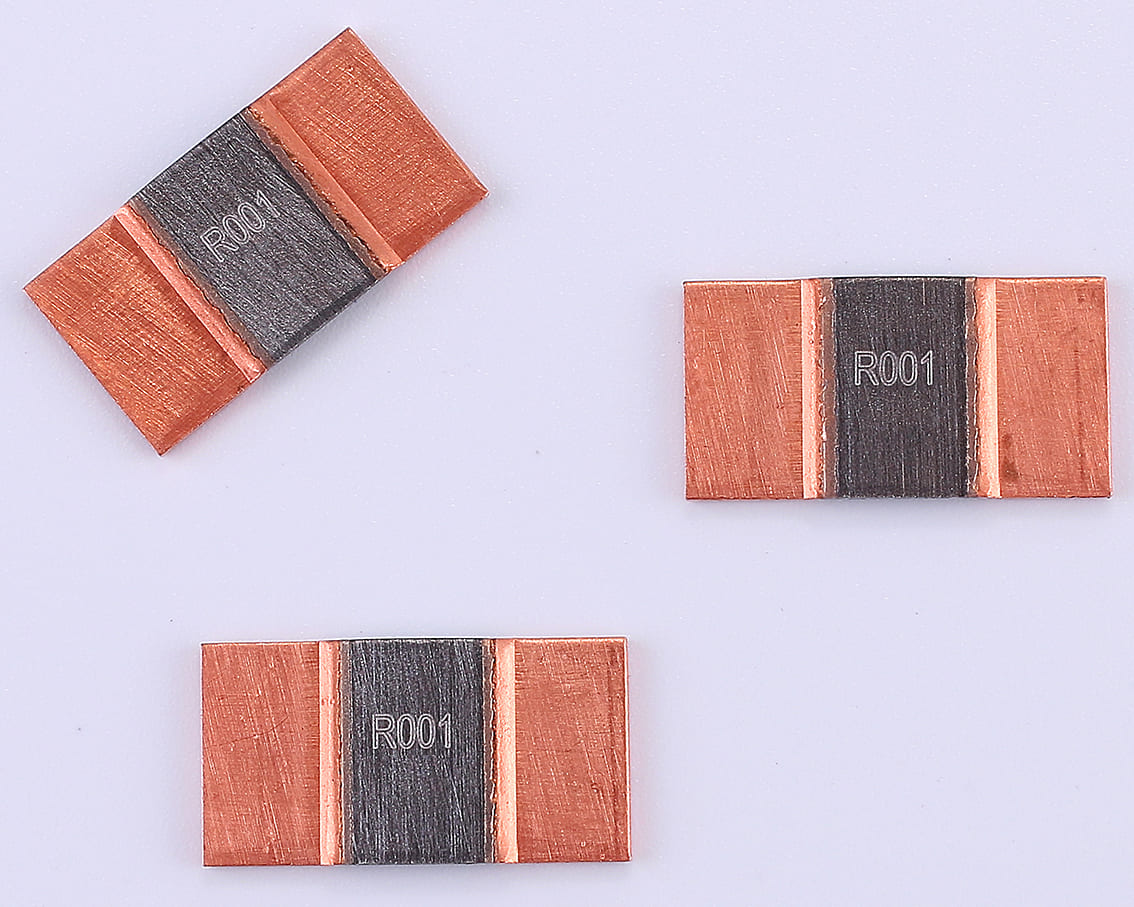

SBB Current sensing SMD Shunt Resistor |
See Details | See Details | |
|
 |
SBC Current sensing SMD Shunt Resistor |
See Details | See Details | |
|
 |

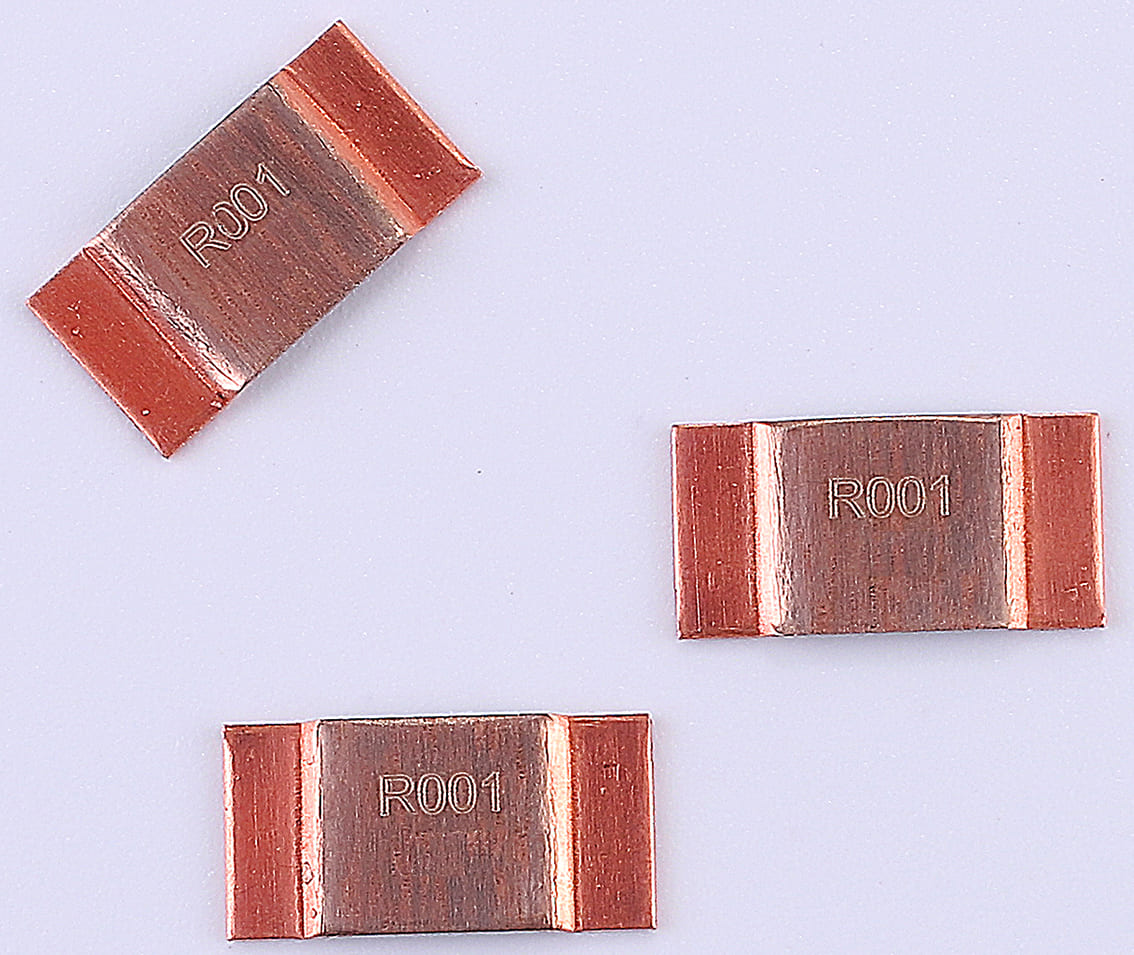

SBF Current sensing SMD Shunt Resistor |
See Details | See Details | |
|
 |

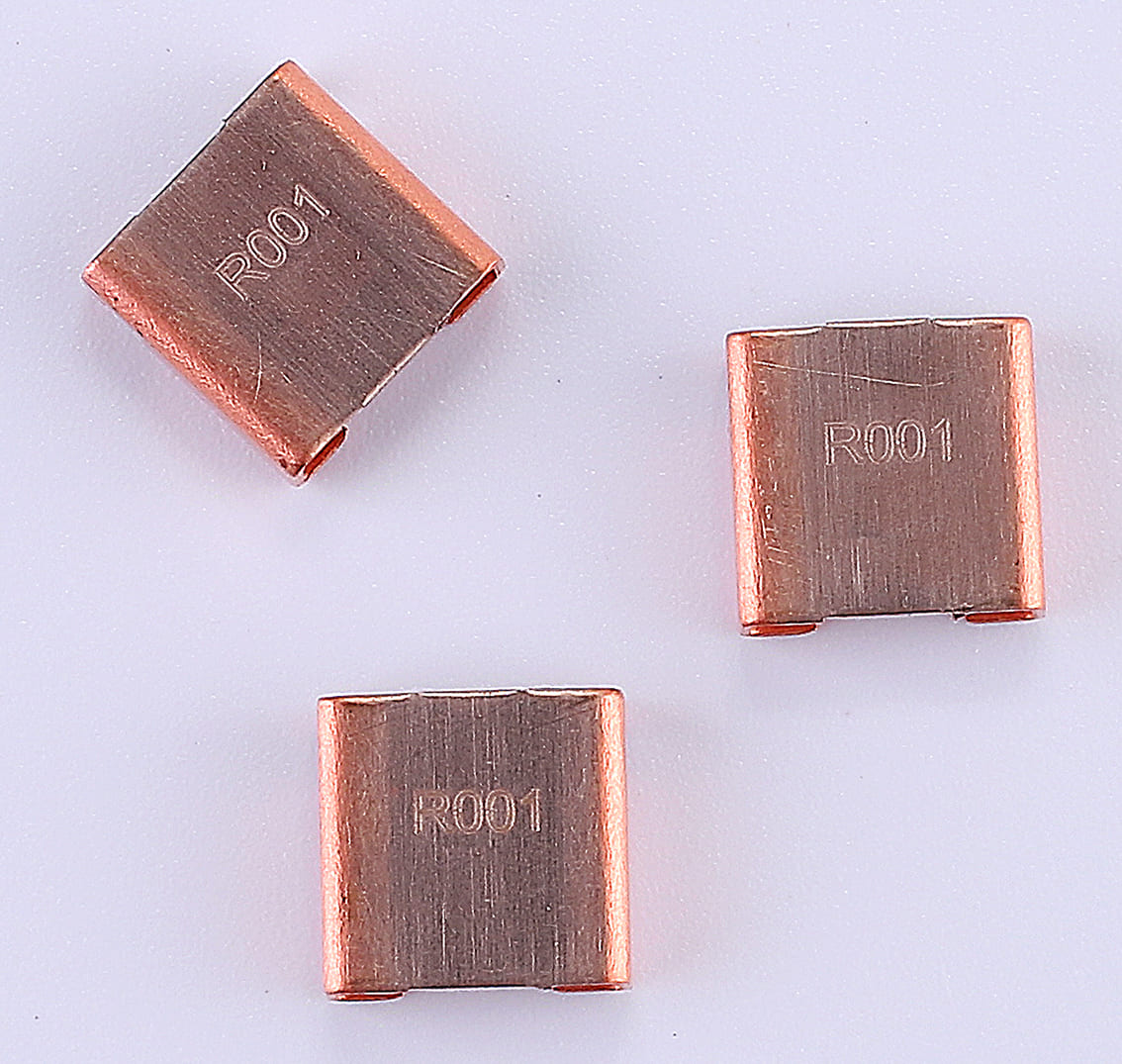

SBG Current sensing SMD Shunt Resistor |
See Details | See Details | |
|
 |

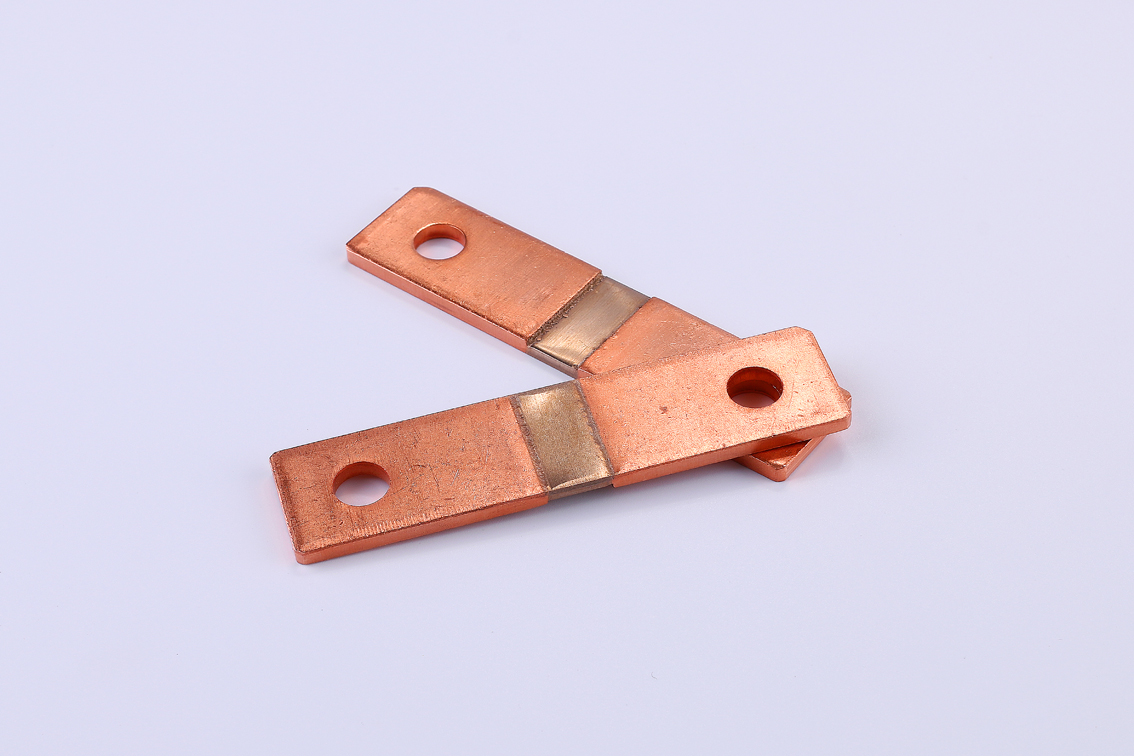

SBZ Large Current Sensing Shunt Resistor |
36 | 0.05～1m | |
|
| Precision Resistors |  |

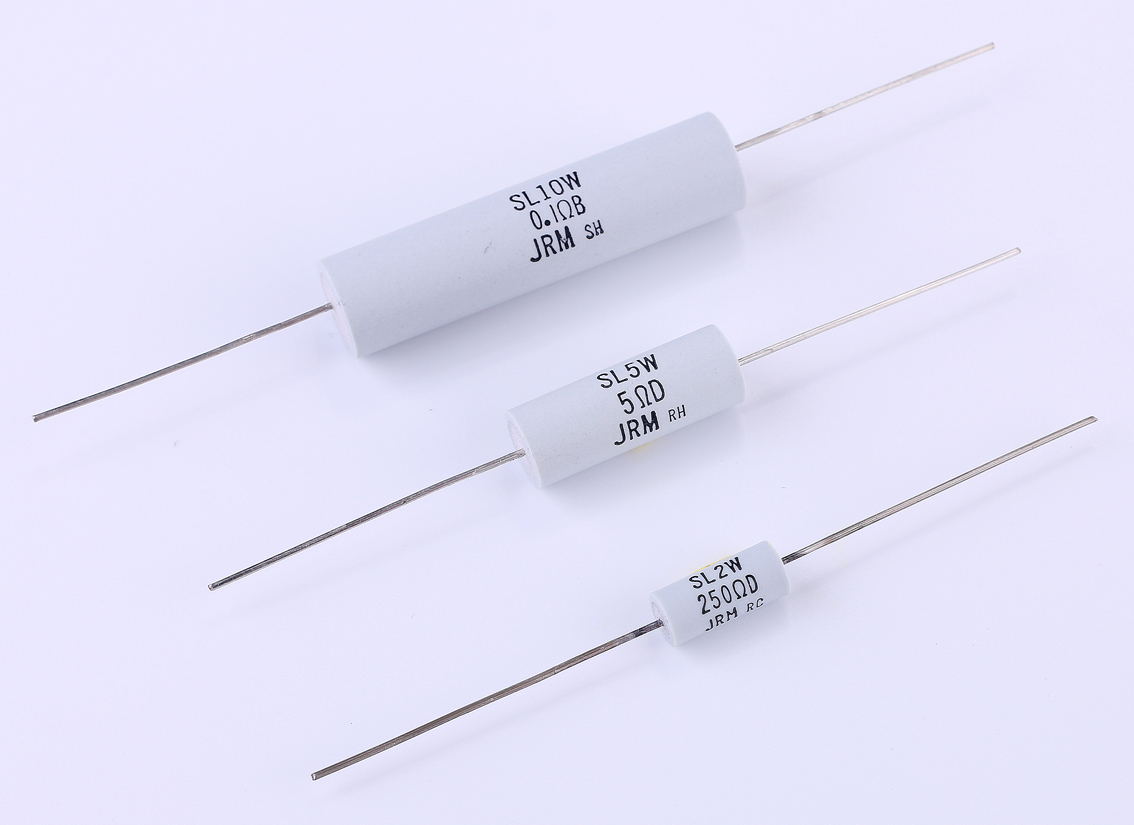

SL Precision type |
2～10 | 0.1～50K | |
| Power type Resistors |  |

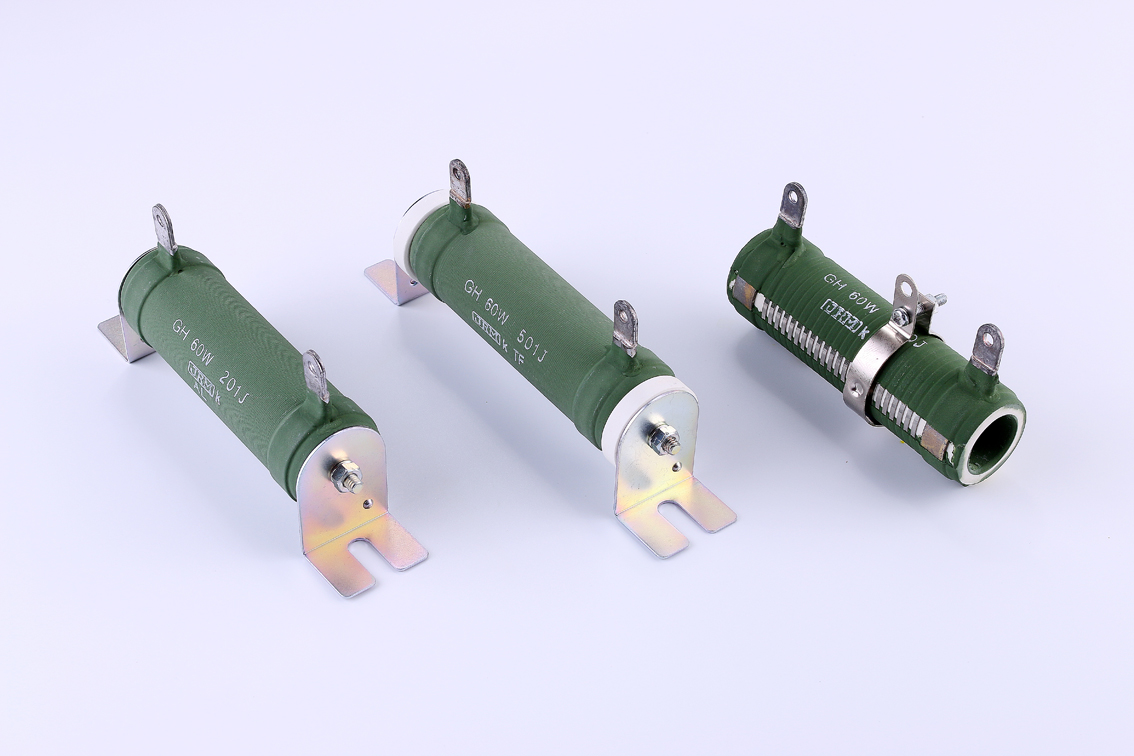

G Power type |
5～400 | 1～400K | |
 |

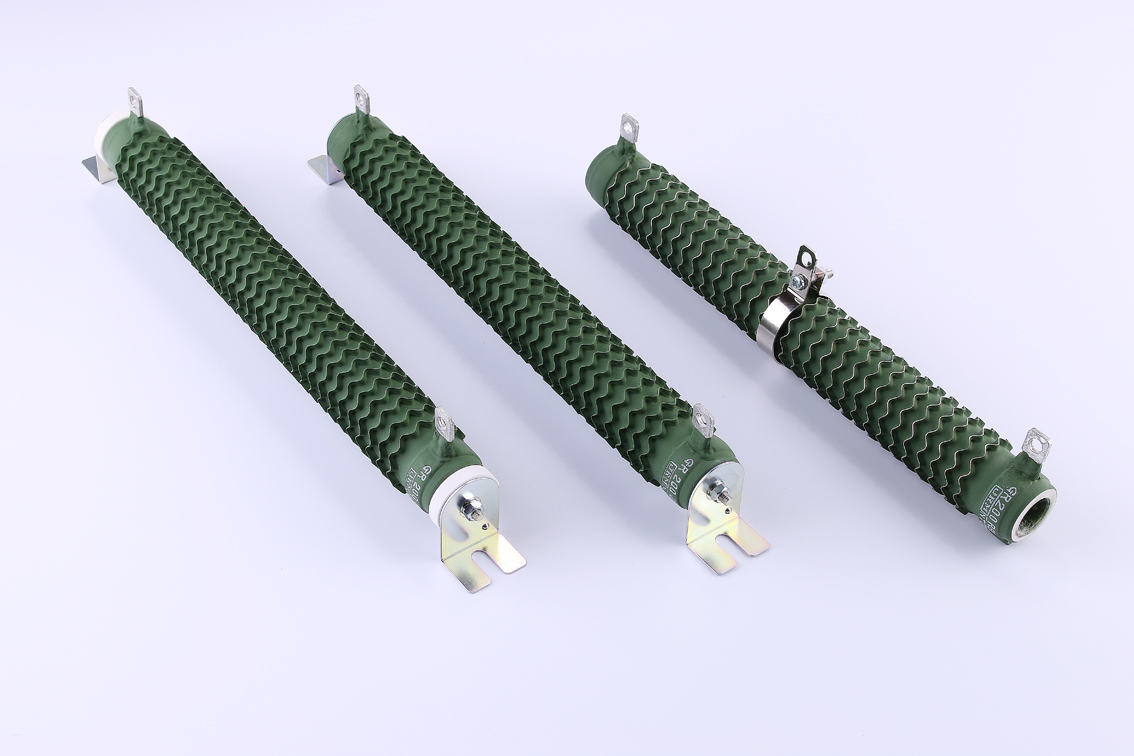

GR High Power & Low-resistance type |
120～600 | 0.02～20 | |
|
 |

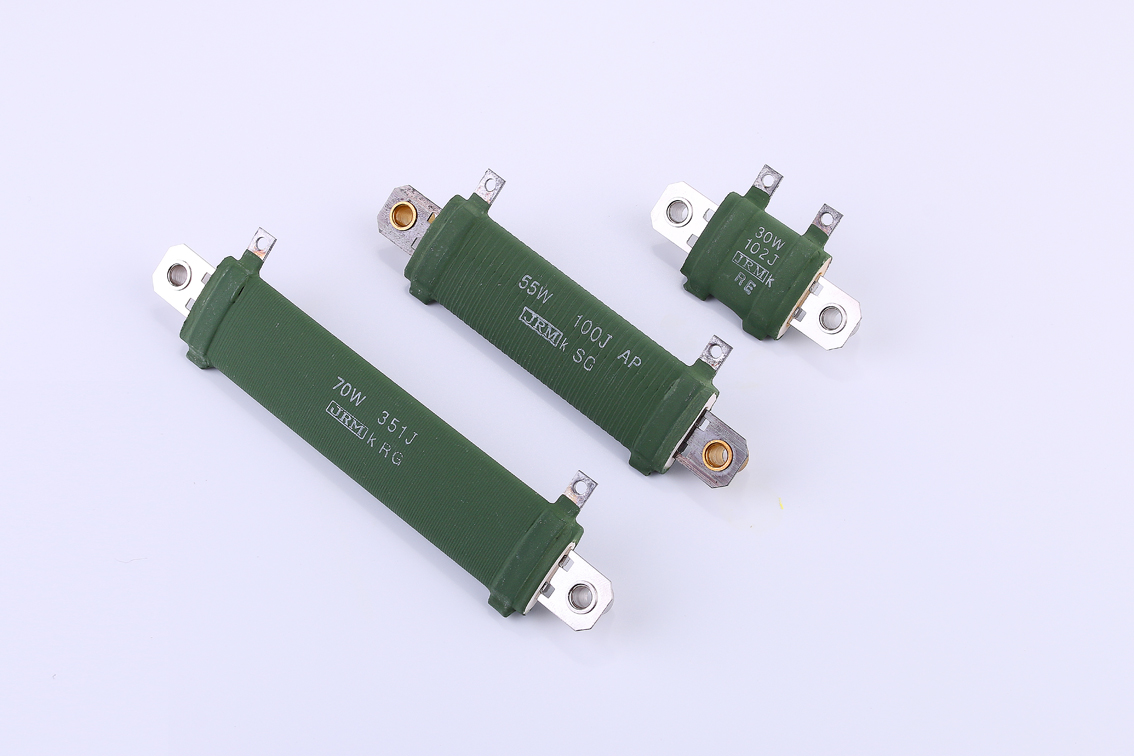

ZGA Flat type |
10～95 | 0.2～80K | |
|
| Metal-Clad Fixed Resistors |  |

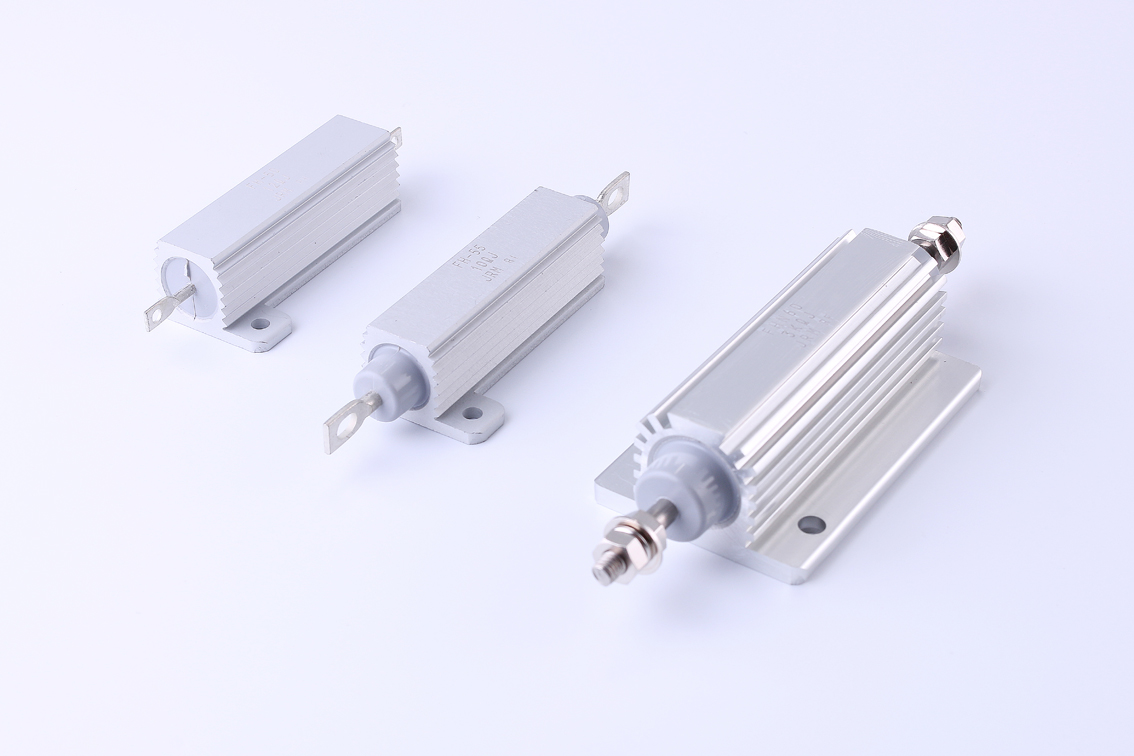

FH Compact and high power type |
6～50 | 0.01～40K | |
 |

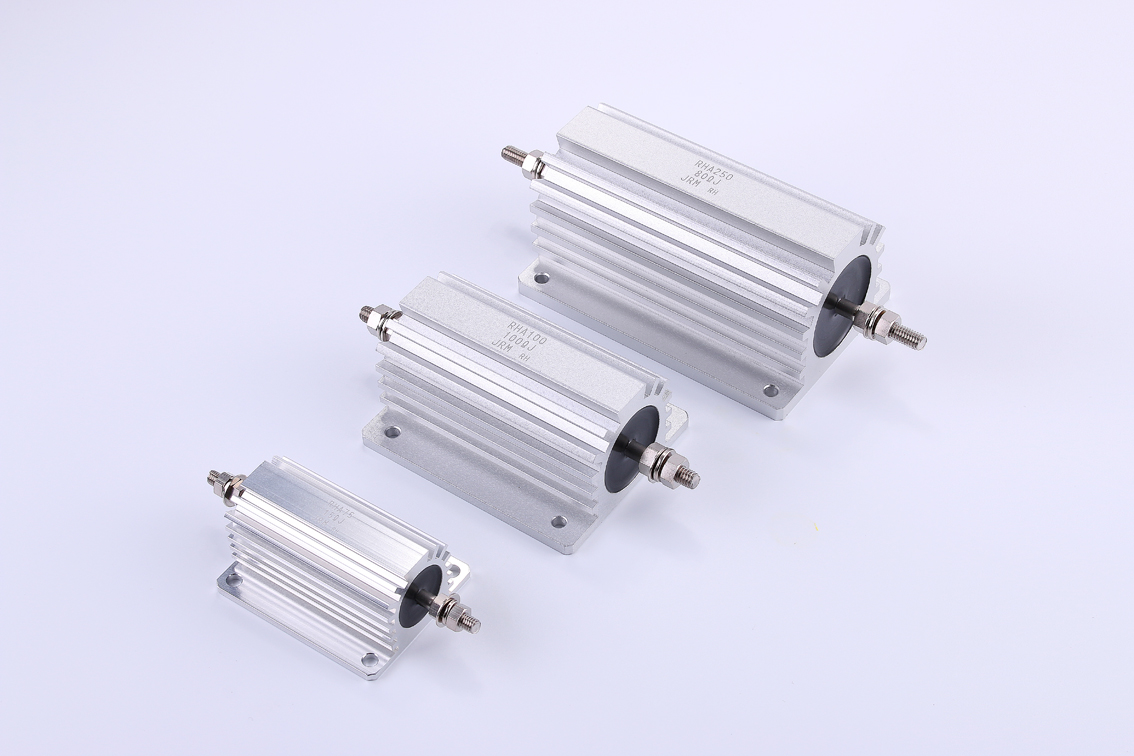

RH Compact and high power type |
30～200 | 0.07～80K | |
|
 |

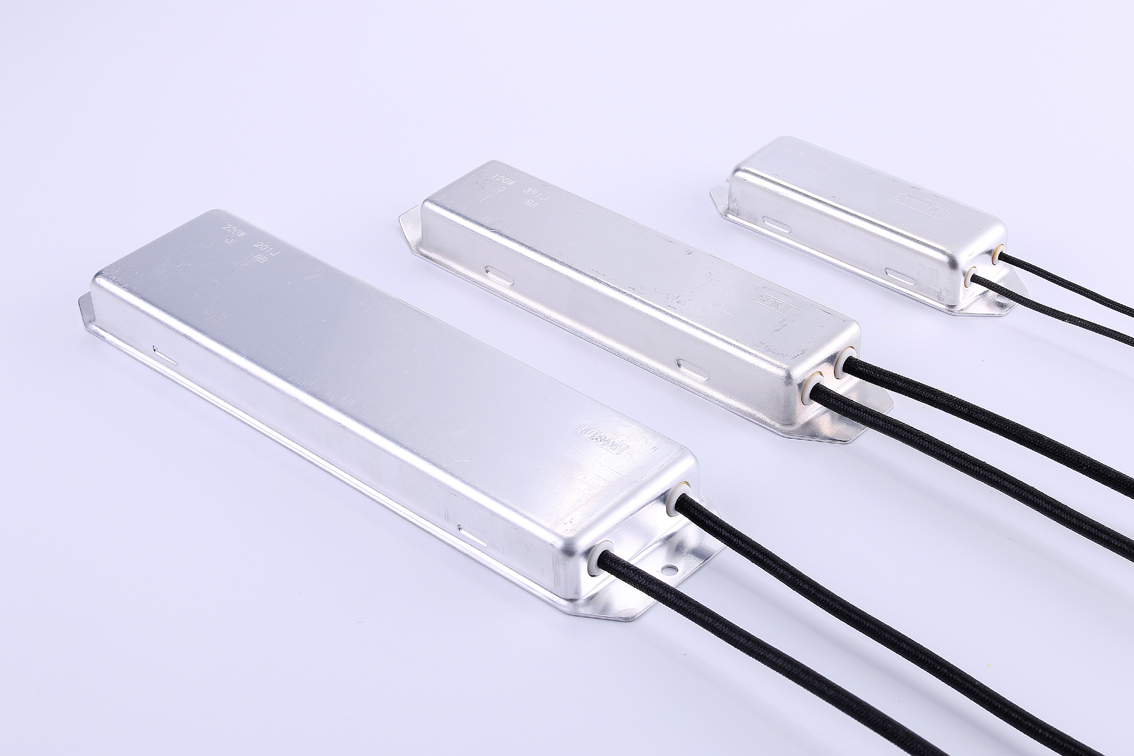

SMR High power type |
60～220 | 0.1～20K | |
|
 |

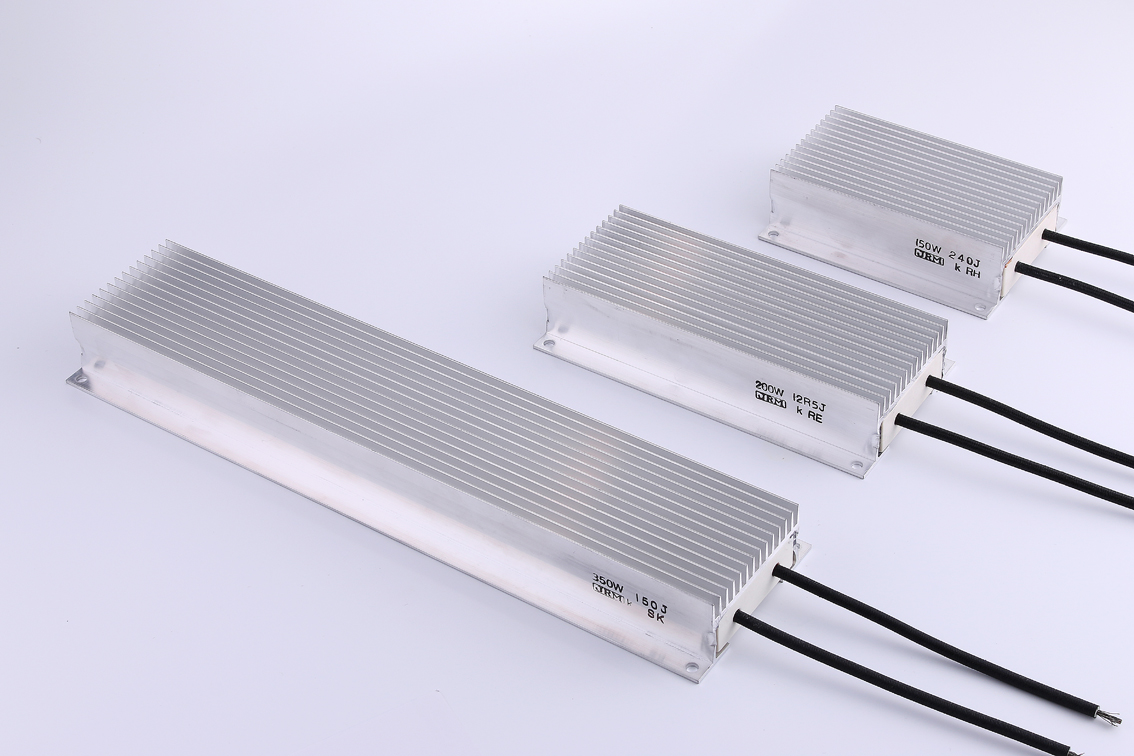

SML High power type |
150～800 | 0.22～36K | |
|
 |

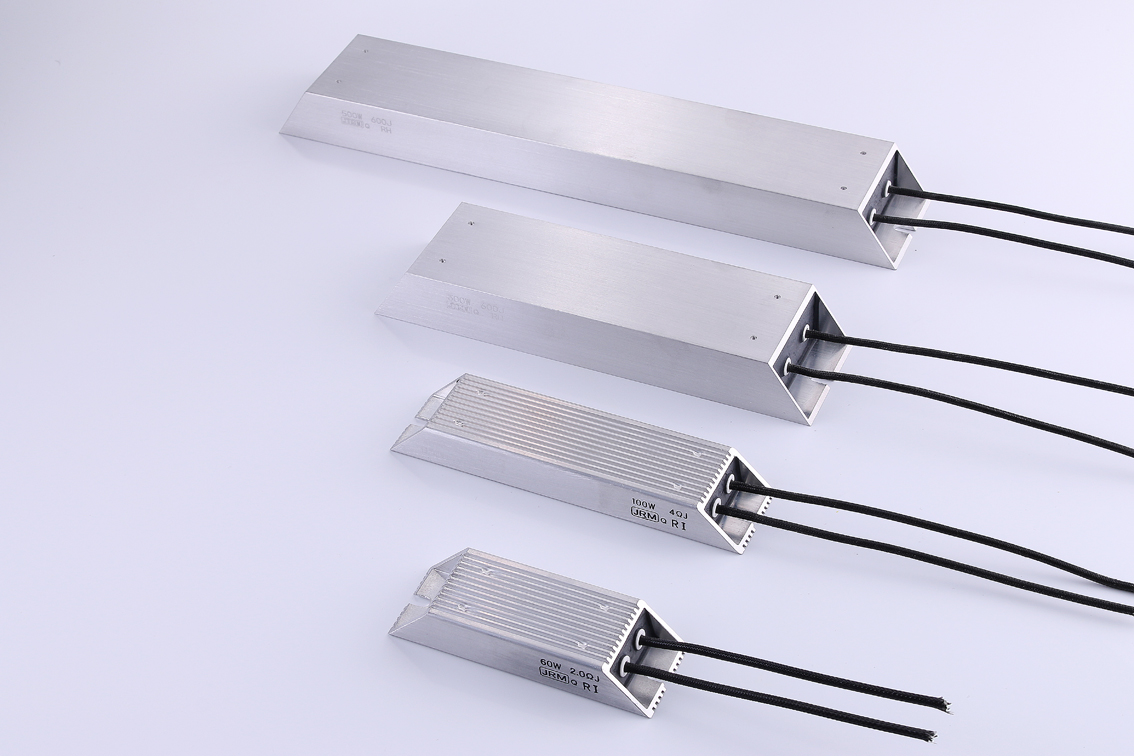

SMV High power type |
60～1,000 | 0.5～5K | |
|
 |

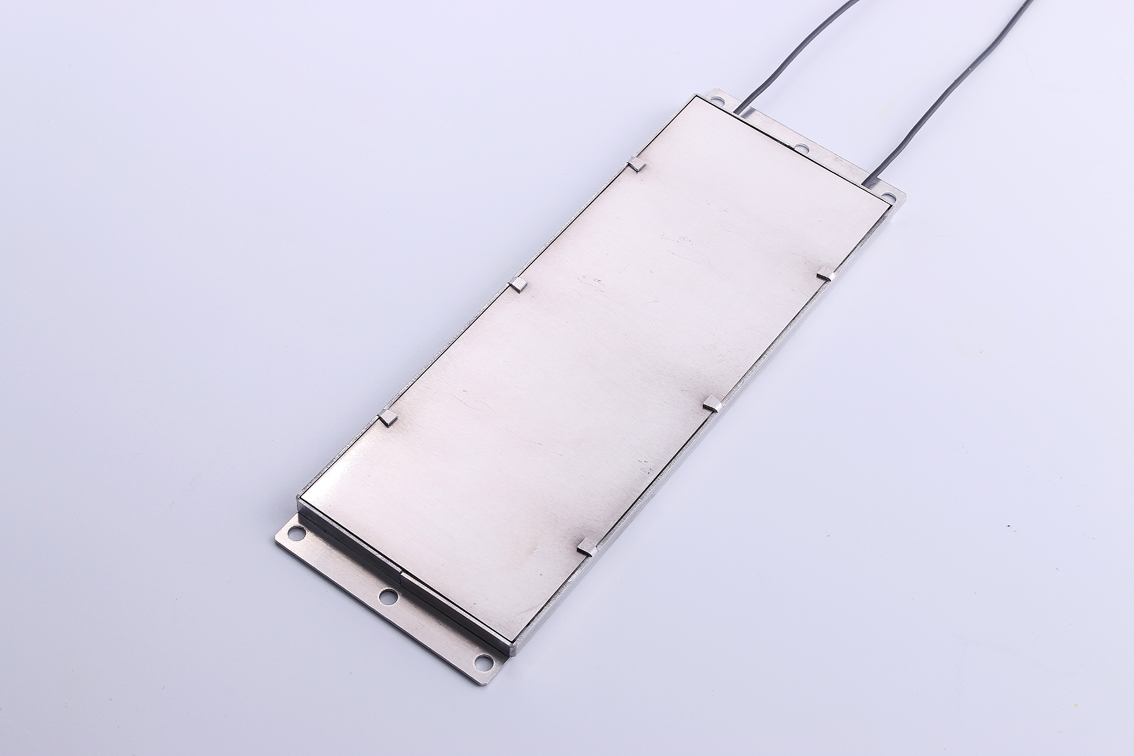

TT High power - Thin type |
70～240 (with Fan) |
1～100 | |
|
| Film Resistors |  |

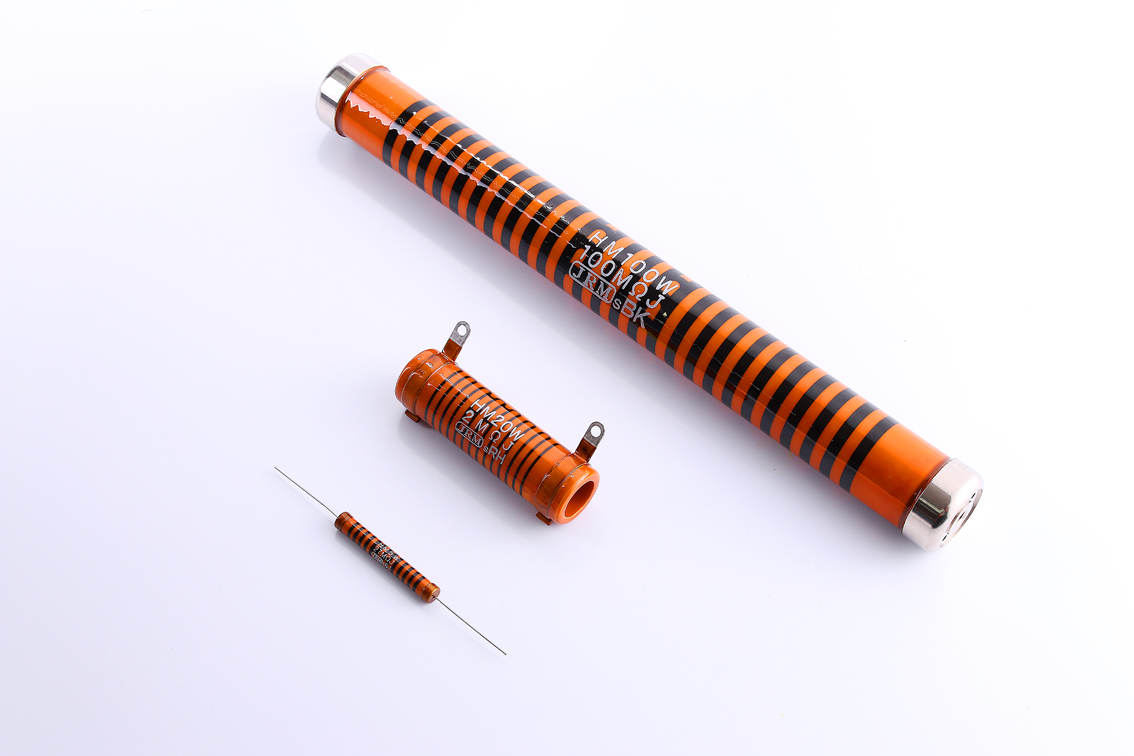

HM High voltage and super high resistance value type |
1～100 | 100K≦R＜250M | |

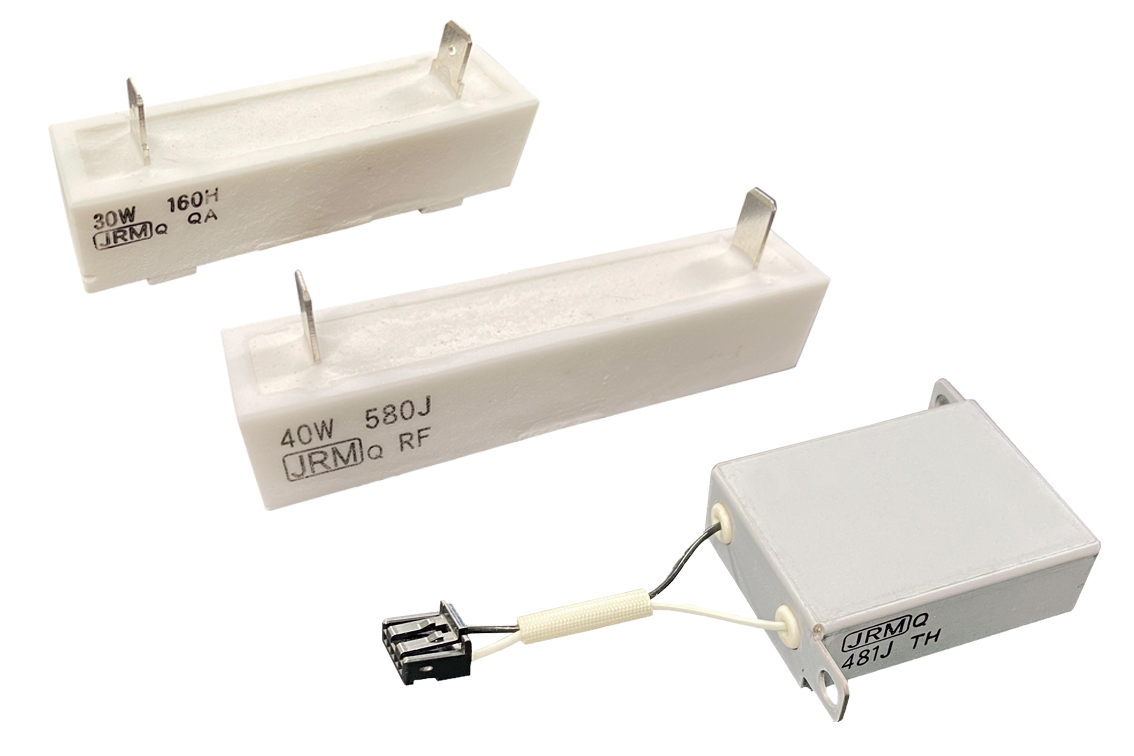

| Customized Resistor for automotive applications |  |
- | - | - | |
