Hybrid Integrated Circuit
It can be applicable to one-stop production from circuit design and pattern design to manufacturing and final inspection.
Features
- More compact and lighter
- High density and high integration
- Supports various substrate types (Suitable for thick film printing)
- Suitable for special processes
- RoHS compliant (Eu-RoHS)
- Traceable
Applications
- In-vehicle equipment (ECU, meter display circuit etc.)
- Industrial equipment (motor control circuit, inverter control circuit etc.)
- Consumer electronics (power supply circuit, inverter control circuit etc.)
- Communication equipment (display circuit, logic circuit, driver circuit etc.)
- OA equipment (motor control circuit, signal processing circuit etc.)
Special processes
It is also applicable to special processes. In addition, it can be used to make unique equipment.
- Visual inspection by camera
- Robot working (soldering and screw tightening etc.)
- Function trimming
« Function trimming »
It is possible to eliminate volume from high density mounting board. With our original measurement technology,
high performance can be realized by performing automatic trimming.
Applicable to time constant and multiple tuning.
Inspection
It is applicable to various inspections. In addition, it can be used to make customized characteristic inspection equipment.
- Camera image inspection
- X-ray inspection
- In-circuit test
- Customized characteristic inspection

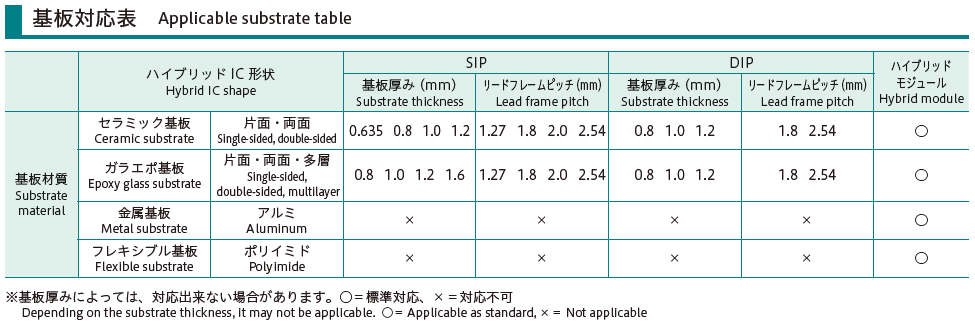

Table of Standard Hybrid Integrated Circuit & Hybrid module
